RE_CO_500 Repository Map(17.4-8.5-4)

The RE_CO_500 Reservoir Map (4-8.5-17.4) is an autoCAD executive map related to the water and wastewater network. This map can be used for students, engineers and companies of water-dam and network .agriculture and … Reservoir maps are located under the category of water and wastewater network.

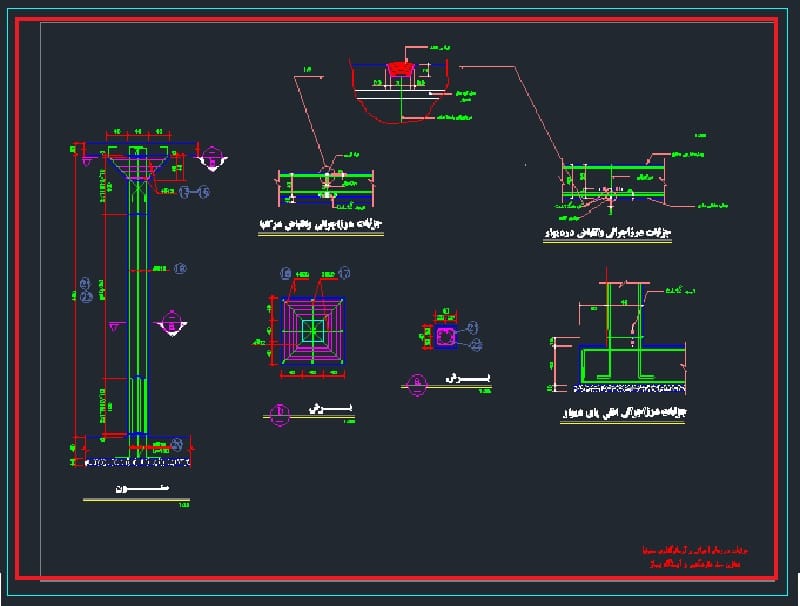

Repository map RE_CO_500 (17.4-8.5-4), AutoCAD map and stored in AutoCAD version 2000 and after compression, on the Site of Iran Avisa File Store map, has been loaded for download. In this map, the size of the reservoir is 17.4*8.5*4 meters and the volume of the reservoir is 500 cubic meters.This map contains twenty-five sheets of the map including the plan and the cross section of the reservoir. You bring it.
